SHARP LS027T8FD02 LCD Panel 2.7 inch Hard coating with 59.01×33 mm
LS027T8FD02 Specification
| Panel Size : | 2.7 inch |
| Dot Resolution : | 320(RGB)×220 |
| Pixel Configuration : | RGB Delta |
| Pixel Density : | 145 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| | Flat Rectangle Display |
| Dot Pitch : | 0.0615×0.1844 mm (H×V) |
| | 17.7g (Max.) |
| Surface : | Hard coating (2H) |
| | 59.01×33 mm (H×V) |
| Outline Dimension : | 64.1×43.135 mm (H×V) |
| | 2.144 mm |
| Landscape or Portrait : | Landscape type |
| | Without |
| Display Mode : | TN, Normally White, Transflective |
| Contrast Ratio : | 200 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 9.5:1 (Typ.) (Reflective) |
| | Full color () |
| Color Gamut : | 70% NTSC (CIE1931) |
| Response Time : | 20/40 (Typ.)(Tr/Td) |
| Viewing Angle : | 35/35/30/50 (Typ.)(CR≥10) (L/R/U/D) |
| | 5.47% (Typ.)(with Polarizer) |
| | 1.3/2.0% (Min./Typ.) |
| Sunlight Readable : | Y |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packing & Delivery for our LCD Screen Panel Replacements:
- Anti-static Bag Packing.
- Anti-Shock Bubble Bag Packing
- Foam and Hard Carton Packing
- Picked up by forward and delivered by express services.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

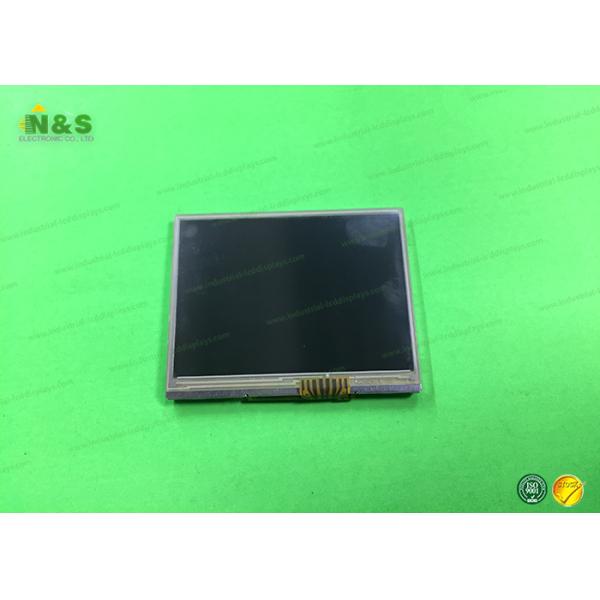

LS027T8FD02 Picture
